In-Motion Weighbridges

We at ‘Exelon’ offer an extract of 15 invincible years of Weighing Systems. I.e. Industrial Truck Scales, Weighing Scales, Industrial Weighing, and automation. We are having thorough expertise in this industry. We have AN ISO: 9001 – 2015 certified manufacturing unit in Ahmedabad Gujarat, India.

Exelon Weighing System is one of the leading manufacturer, Exporters and Suppliers of Pit Type weighbridges in Ahmedabad. We are offering best quality Products as per customized requirements as per their Demands

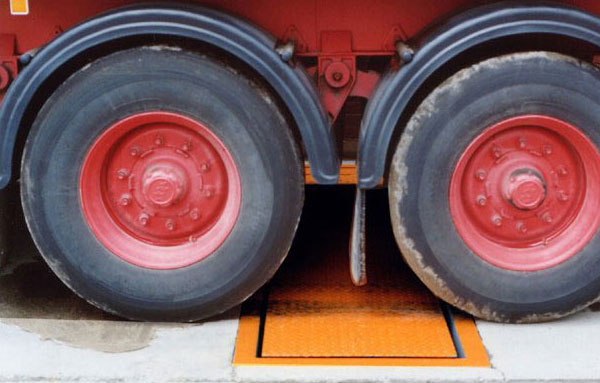

truck weigh-in-motion

Our steel TRUCK SCALE decks offer higher strength, greater reliability and faster installation than conventional systems. Their simple foundations, fast, bolt-down sitting and innovative box construction have made them the preferred choice of operators across the country. You can choose either a Surface Mounted or a Pit Mounted TRUCK SCALE depending on the space availability. The platform of the truck scale is designed to withstand harsh environmental conditions.

Truck-Weigh-In-Motion

IRREFUTABLE SYSTEM FOR TRUCKING TERMINALS

Trucks with axle loads higher than legal limits cause a disproportionately higher percentage of damage to the infrastructure and adverse impact on traffic safety. Exelon Truck Weigh in motion System (TWIM) is a robust, reliable, maintenance-free weighing mechanism designed for use on highway entries with non-stop heavy traffic. Weighing accuracy and performance are approved for trade use and for law enforcement purposes.

When speed is critical and vehicle weighing is an integral part of the operation, the Exelon TWIM system provides significant cost savings over full-platform and axle scales. The vehicle loads (wheel, axle, GVW, load ratios) are automatically analyzed and compared to legal limits, and results are displayed on the operator’s PC monitor, the driver gets the corresponding printout and the data are also recorded for further reporting or can be sent via LAN or Internet to the server.. This minimizes operator’s mistakes, offers inbuilt data protection, and allows vehicle throughput of up to 180 vehicles per hour.

Product Details:


Working Temperature55 deg. Celsius
Accuracy0.05 %
Accuracy (%)0.3 to 0.5 on FSO
Power (W)230 V
ConditionNew
Speed (km/Hr)5 to 10 Km/H
Temperature (deg. Celsius)50
MaterialStainless Steel
TypeElectronic
Load Capacity30 Ton
BrandExelon

THE FOLLOWING DATA OF THE VEHICLES IS GENERATED:

  • The total weight of the vehicles.
  • Each individual axle weight
  • Numbers of axle of the vehicle
  • Data and time of vehicle passed on the weigh in motion scale
  • Number of vehicles passed on the weigh in motion scale
  • Speed of the Vehicle
Truck-Weigh-In-Motion
