Electronic Weighing Scales

We at ‘Expert’ offering an extract of 15 invincible years of Weighing Solutions. I.e. Industrial Truck Scales, Weighing Scales, Industrial Weighing and Automations. We are having thorough expertise in this industry. We have AN ISO: 9001 – 2015 certified manufacturing unit at Ahmedabad Gujarat, India.

Exelon Weighing System is one of the leading manufacturer, Exporters and Suppliers of Pit Type weighbridges in Ahmedabad. We are offering best quality Products as per customized requirements as per their Demands

TABLE TOP SCALES

  • Auto zero tracking
  • Auto calibration (Smart Program)
  • Auto power saving function
  • User friendly operation
  • 6mm bright RED LED
  • Kg./Ltr. conversion
  • Piece counting
  • Inbuilt battery backup
  • Dual/triple accuracy.

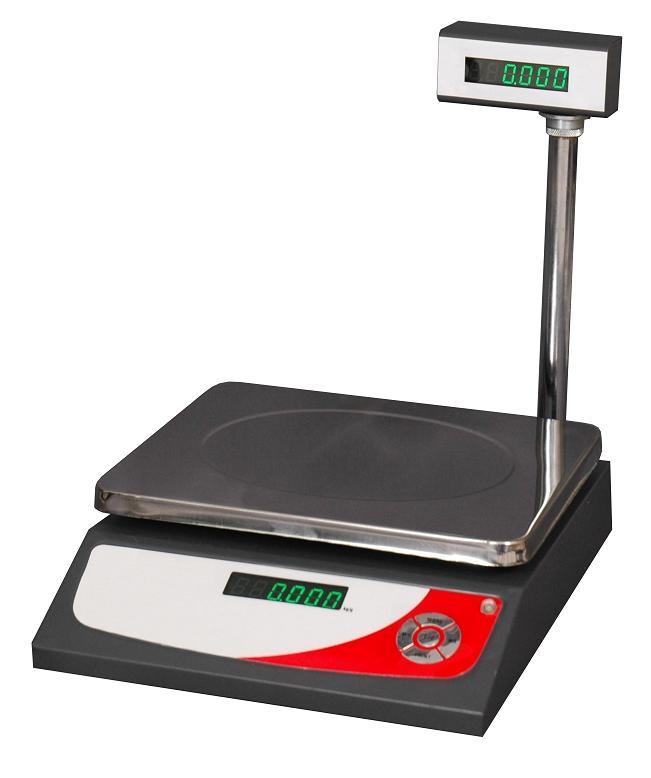

Table Top Scale

Exelon Weighing System is dedicated to serve Best Quality, User Friendly and Reliable Electronic Weighing Scales by applying most Advance Technology at Reasonable Price.

TECHNICAL SPECIFICATION:

Capacity

e-value



Pan Size (mm)



1 kg

100 mg

175 X 225

—

—

2 kg

200 mg

175 X 225

—

—

5 kg

500 mg

175 X 225

240 X 300

280 X 340

10 kg

1 g

175 X 225

240 X 300

280 X 340

20 kg

2 g

175 X 225

240 X 300

280 X 340

30 kg

1/2/5 g

—

240 X 300

280 X 340

40 kg

2/5 g

—

240 X 300

280 X 340

50 kg

5 g

—

240 X 300

280 X 340

Features:

  • ABS/powder coated against power coted as mentioned/s.s. kg/ltr conversion facility
  • Over Load Protection.
  • Weather & Water proof sophisticated tactile keyboard.
  • High accurate load cell.
  • Approved by Weight & Measurement Dept. Govt. of India.
  • 12 to 15 w Power consumption.
  • 230 V ± 10% 50 Hz volts AC.
  • Operating Temperature Range 0°C to 50°C.
platform-scale-500x500

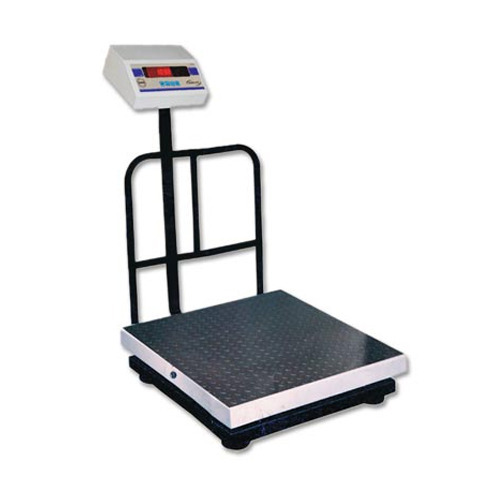

PLATFORM & BENCH SCALES

  • Auto zero tracking
  • High Accurate Load Cell Based Scale
  • S.S./M.S. sturdy grill
  • Rugged Square pipe Structure
  • ABS Body Indicator on adjustable separate/Attached pole
  • S.S./M.S. Checkered Platform
  • Auto calibration
  • Auto power saving function
  • User friendly operation
  • 6 Digit Red Led Display (14mm Height)
  • Kg./Ltr. Conversion Facility
  • Piece Counting
  • Inbuilt battery backup
  • 6V 4AH Rechargeable Battery
  • Dual/triple accuracy.
  • Corner Overload Protection

TECHICAL SPECIFICATION OF PLATFORM SCALES:

Capacity

e-value



Pan Size (mm)



50 kg

5 g

400 X 400

—

—

100 kg

10 g

400 X 400

500 X 500

—

200 kg

20 g

—

500 X 500

600 X 600

300 kg

10/20/50 g

—

600 X 600

600 X 600

500 kg

50 g

—

750 X 750

900 X 900

1000 kg

100 g

—

1000 X 1000

1200 X 1200

1500 kg

200 g

—

1200 X 1200

1500 X 1500

2000 kg

200 g

—

1200 X 1200

1500 X 1500

3000 kg

500 g

—

1200 X 1200

1500 X 1500

5000 kg

500 g

—

1500 X 1500

1800 X 1800



OPTIONAL FACILITIES:

  • Price / Piece Counting Facility
  • / Kg Facility
  • RS 232 C port (Isolated) Computer Interfacing
  • 4~20mA output Facility
  • Sticker Printing Facility
  • Wireless Indicator / Remote Display
  • Direct Printing Facility with Data Storage
  • Complete SS Construction (SS316)
  • Auto E-mail & SMS Facility
  • Customized Software available.
