Electronic Weighing Scales

We at ‘Expert’ offering an extract of 15 invincible years of Weighing Solutions. I.e. Industrial Truck Scales, Weighing Scales, Industrial Weighing and Automations. We are having thorough expertise in this industry. We have AN ISO: 9001 – 2015 certified manufacturing unit at Ahmedabad Gujarat, India.

Exelon Weighing System is one of the leading manufacturer, Exporters and Suppliers of All Type Weighing Scales in Ahmedabad. We are offering best quality Products as per customized requirements as per their Demands

ROLLER PLATFORM SCALES

  • Auto zero tracking
  • Auto calibration (Smart Program)
  • Auto power saving function
  • User friendly operation
  • 6mm bright RED LED
  • Kg./Ltr. conversion
  • Piece counting
  • Inbuilt battery backup
  • Dual/triple accuracy.
rollers_plat_form

Capacity

E value

Platform Size (mm)

Capacity

E-value



1 Kg.

50/100 mg.

175 x 225

–

–

2 Kg.

100/200 mg.

175 x 225

–

–

5 Kg.

500 mg.

175 x 225

240 x 300

280 x 340

10 Kg.

0.5/1.0g.

175 x 225

240 x 300

280 x 340

20 Kg.

1/2g.

–

240 x 300

280 x 340

30 Kg.

1/2/5g.

–

240 x 300

280 x 340

40 Kg.

2g.

–

240 x 300

280 x 340

31DmIc9ggkL._SX355_

BABY SCALES

  •  Auto zero tracking
  • High Accurate Load Cell Based Scale
  • S.S./M.S. sturdy grill
  • Rugged Square pipe Structure
  • ABS Body Indicator on adjustable separate/Attached pole
  • S.S./M.S. Checkered Platform
  • Auto calibration
  • Auto power saving function
  • User friendly operation
  • 6 Digit Red Led Display (14mm Height)
  • Kg./Ltr. Conversion Facility.
  • Piece Counting
  • Inbuilt battery backup
  • 6V 4AH Rechargeable Battery
  • Dual/triple accuracy.
  • Corner Overload Protection

Capacity

E value

Platform Size (mm)

50 Kg.

5 g.

400 x 400

500 x 500

–

100 Kg.

10 g.

400 x 400

500 x 500

600 x 600

150 Kg.

20 g.

400 x 400

500 x 500

600 x 600

200 Kg.

10/20 g.

–

500 x 500

600 x 600

300 Kg.

10/20/50 g.

–

600 x 600

750 x 750

500 Kg.

50 g.

600 x 600

750 x 750

900 x 900

1000 Kg.

100 g.

–

750 x 750

900 x 900

1500 Kg.

200 g.



900 x 900

1200 x 1200

2000 Kg.

200 g.



1200 x 1200

1500 x 1500

3000 Kg.

500 g.



1200 x 1200

1500 x 1500

5000 Kg.

500 g.



1200 x 1200

1500 x 1500



Technical Parameters

  • Weather & Water proof sophisticated tactile keyboard.
  • Approved by Weight & Measurement Dept. Govt. of India.
  • 12 to 15 w Power consumption.
  • 230 V ± 10% 50 Hz volts AC.
  • Operating Temperature Range 0°C to 50°C.

Options

  • Extra/Remote Display
  • Printer/Rs 232 Interface.

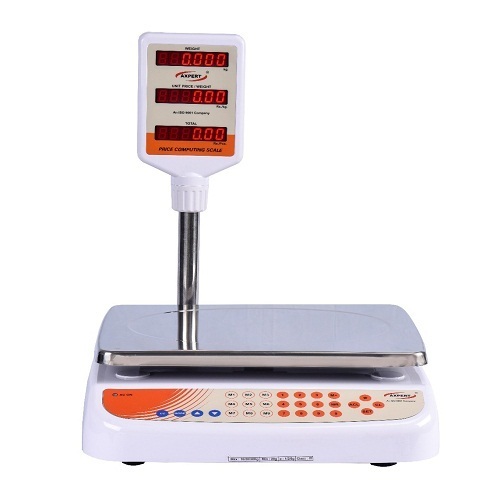

PRICE COMPUTING SCALES

  • ABS Body with steel Top Platter
  • 24 bit Σ-△ ADC (High resolution).
  • High Bright RED / GREEN LED display.
  • Weather & water proof tactile key pad.
  • In Built Power Saving Function.
  • KG. / LTR. Conversion
  • Memory Accumulation.
  • In Built Piece Counting function
  • 99-In Built Memory for price computing.
  • A.C. on Indications
  • Dual / Triple accuracy is also available.
  • Power Supply : 230 V AC ±10%, 50 Hz
price-computing-weighting-scale-500x500
ModelCapacityAccuracy(e)Pan Size
Pc Scale30 Kg.5 g.280 x 340 mm
Pc Scale40 Kg.5 g.280 x 340 mm
Pc Scale50 Kg.5 g.280 x 340 mm

ACCESSORIES :

  • 6V 4Ah SMF In Built Battery Back Up
  • Computer / Printer interface (RS – 232 C)
  • USB port (to connect with computer).
  • Solar Panel (Optional)

We ensure about quality goods
